XMAX STARRY 3.0 VAPORIZER OPERATION GUIDE

XMAX STARRY 3.0 VAPORIZER OPERATION GUIDE

Summary

XMAX STARRY 3.0 VAPORIZER OPERATION MANAUL, HOW TO USE XMAX STARRY 3.0 (V3) IN THE RIGHT WAY!

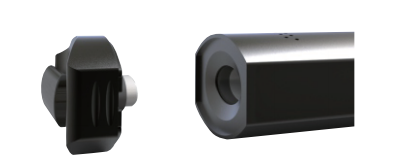

1.Remove magnet cap


Remove magnet cap

2.Pack moderate ground herb into the chamber


Pack moderate ground herb into the chamber

(For concentrate, please put the metal pad into insert ceramic chamber and then load wax.)

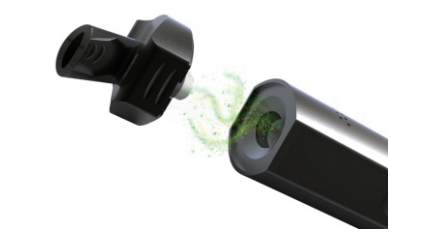

3.Replace the magnet cap


Replace the magnet cap

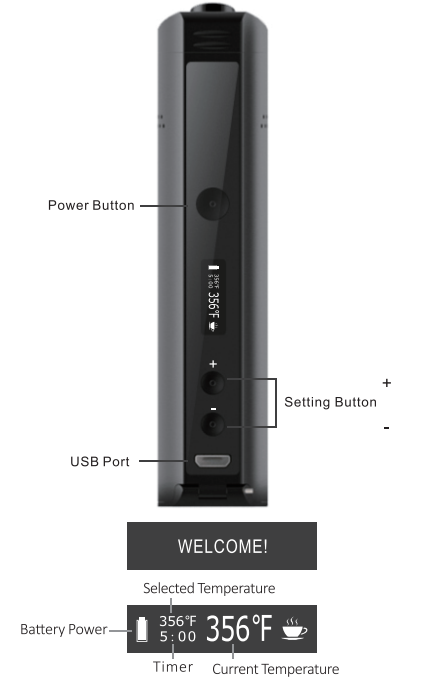

4.Hold and press the power button for 3 seconds to turn on the XMAX STARRY3.0 and it will begin to heat up at once under the default settings. The " teapot ” will keep blinking during the heat-up stage, the “  ”will become solid and device vibration indicates readiness. Inhale through the mouthpiece and enjoy.


Hold and press the power button for 3 seconds to turn on the XMAX STARRY3.0

5.Setting temperature

Press the “+” to increase temperature, press the ”-” to decrease temperature.(XMAX STARRY3.0 will automatically remember your last setting when restart.)


The "  " will become solid and device vibration indicates readiness. Inhale through the mouthpiece and enjoy till the OLED screen off, the vibration indicates off.

Setting temperature


6.Temperature switchover between Fahrenheit and Celsius. Hold the Power button and “-” button at the same time for 2 seconds.


Temperature switch over between Fahrenheit and Celsius

7.Timer switchover between 5 minutes and 10 minutes. Hold the Power button and “+” button at the same time for 2 seconds.


Timer switchover between 5 minutes and 10 minutes

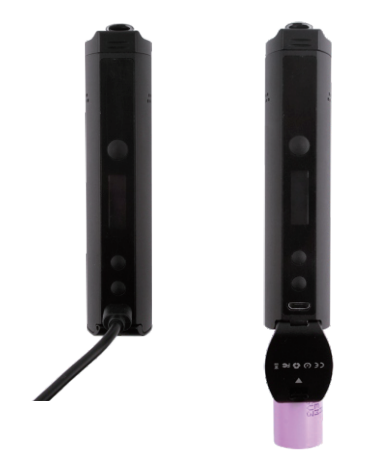

8.CHARGING


A.To protect and extend the battery, It is recommended your XMAX STARRY3.0 be charged with wall adapter for at least 6 hours before its first use. (External 18650 battery charger is available but not included.)

XMAX STARRY 3.0 CHARGING

B.When Charging, the OLED screen will light on. The battery icon will change to show battery charging condition. The icon gauge will be full when battery fully charged.

When Charging, the OLED screen will light on.

C.After using the XMAX STARRY3.0 and power adapter, allow them to cool down before storage. Store the STARRY3.0 in a dry and cool place to protect against the effects of weather and out of reach of children or unqualified persons.

9.CLEANING/AND MAINTENANCE

To maintain the XMAX STARRY3.0,it is recommended to clean the chamber and the mouthpiece after every use.

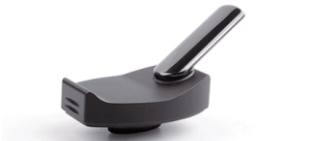

A.Clean the mouthpiece, use a cotton swab and wipe the inner part of the mouthpiece then wipe again witha damp paper towel.

Clean the mouthpiece

B.Clean the filter. Prepare aglass container filled with isopropyl alcohol. Remove the filter from magnet cap, and place it in the isopropyl alcohol.

Clean the filter

C.Clean the Ceramic heating chamber, wet a cotton swab in the alcohol. Insert into the chamber and scrub the sides and bottom with a circular motion.

Clean the Ceramic heating chamber

D.After soaking, remove any remaining debris using a cotton swab.Allowboth pieces to dry completely before use.

NOTE


DO NOT CLEAN THE WHOLE DEVICE WITH WATER OR SUBMERGE.

DO NOT INJECT ANY LIQUID OR OIL INTO THE CERAMIC CHAMBER.

MAKE SURE DEACTIVATE THE XMAX STARRY3.0 BYLOCKING.MAKE SURE ITHAS NOT BEEN USED FOR AT LEAST 30 MINUTES AND IS COMPLETELY COOLED OFF.

WARNING


DO NOT TOUCH THE HEATING ELEMENT IMMEDIATELYAFTERUSE,PLEASEALLOW DEVICE TO COOL DOWN.

DO NOT SUBMERGE OR CLEAN WITH WATER OR ISOPROPYL ALCOHOL.

OTHERS


NAME: XMAX STARRY 3.0 (V3) VAPORIZER

BRAND: XMAX

MANUFACTURER: TOPGREEN


OFFICIAL WEBSITE: www.topgreen-tech.com
